3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator

  • 1
  • 2
  • 3

Brand Name : DSSD

Model Number : Pelton turbine

Certification : CE ISO

Place of Origin : Sichuan, China

MOQ : 1set

Price : 25000~3000USD

Supply Ability : 20sets

Packaging Details : wooden box / special packaging: according to the request of the guests

Name : pelton

Brand name : DSSD

Power range : 100kw~20mw

type : pelton turbine

Certificate : CE ISO TUV

Warranty : 12 months

Lifespan : 40~50years

Color : green ,blue or others

Contact Now

3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator ​

Pelton turbine

It is an impulse turbine wherein the flow is tangential to the runner and the available energy at the entrance is completly

kinetic energy. It is prefered at a very high head and low discharge with low specific speeds. The pressure available at the inlet and

the out let is atmospheric.

Pelton turbines can be arranged either by a horizontal or a vertical shaft. In general, a horizontal arrangement is found only in the medium

and small sized turbines woth one or two jets. Some horizontal pelton turbines have however, been built with four jets as well. Large pelton turbines with many jets are normally arranged with a vertical shaft. The jets are symmetrically distributed around the runner to balance the ject forces.

3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator 3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator

Pelton turbine water wheel

Parameters of the product

Runner range 45cm~180cm
Speed range 150RPM~1000RPM
Efficiency 85%~93%
Water head 100~1000m
Nozzle number Single/Multiple
Frequency 50HZ/60HZ
Generator Voltage 400V, 800V, 6300V,10500V
Layout pattern Horizontal or Vertical
Material(blades) Stainless Steel ZGoCr13Ni4Mo
Generator Insulation F/F
Excitation Brushless or Static excitation system

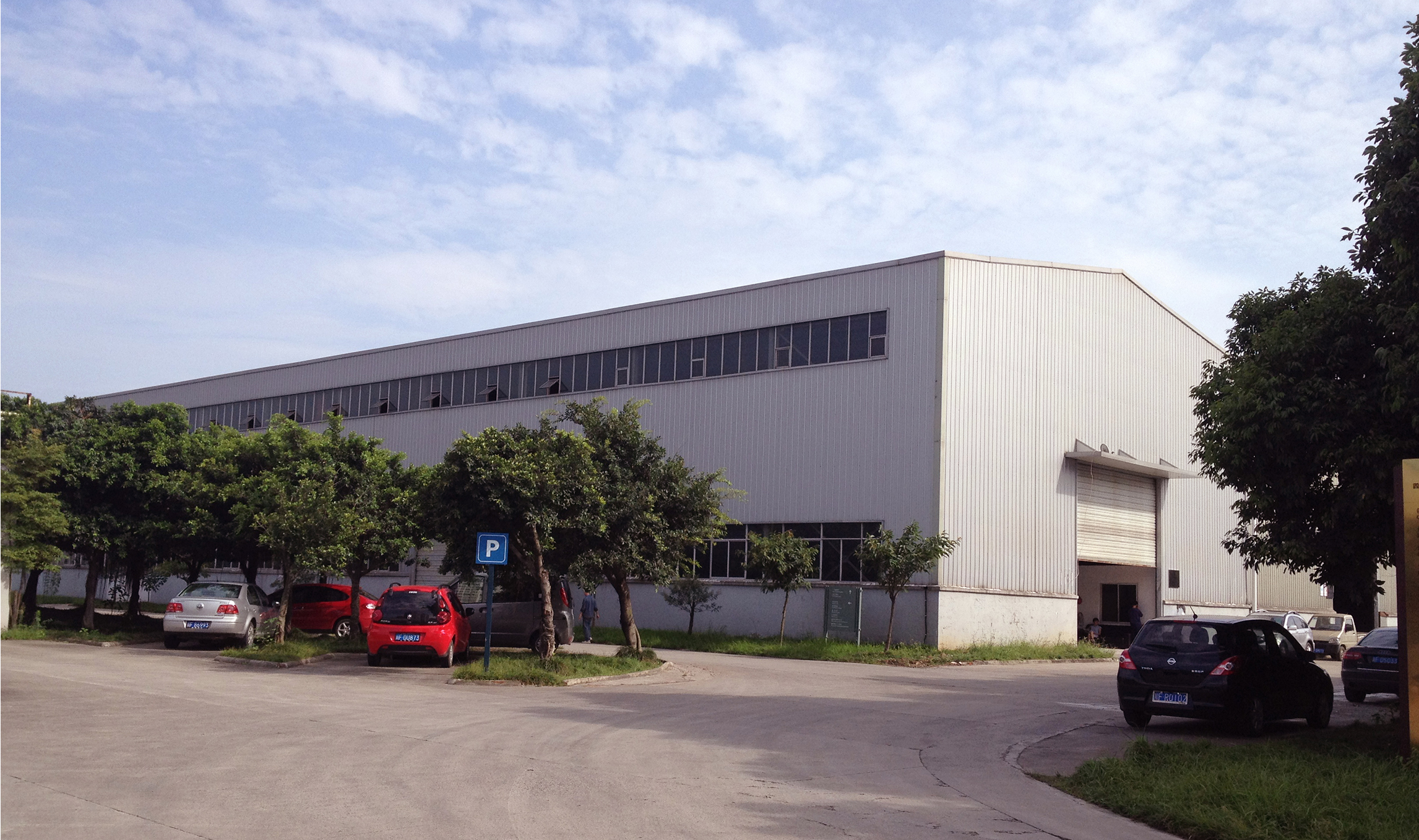

About our company:

3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator

Deyang Dongsen Hydropower Equipment Co.,Ltd is a professional comprehensive technology engineering company in design, manufacturing, installation and maintenance of hydropower equipment as well as in the hydropower station investment.

Our market:

South America, Southeast Asia, Africa, Europe, America, Asia, etc.

3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator

We have:

5 types of water turbine generator: Francis turbine, Pelton turbine, Turgo turbine, tubular turbine and kaplan turbine.

3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator 3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator 3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator 3 Phase Ac Hydropower Plant Equipment High Water Head Pelton Turbine Generator

We offer:

1. Professional advice for client.

2. provide site instruction.

3.we always find the most efficient solution for our customers.

Why choose us?

1.Rich experience---served for more than 500 HPPs

2. Long life span: 30~50 years

3. Top-class design--from DEC

4. Quality guarantee---AAA

5. Delivery guarantee--flexible and high efficiency

6. Lower cost---lower management and labor cost

7. convenient---from penstock to commissioning
